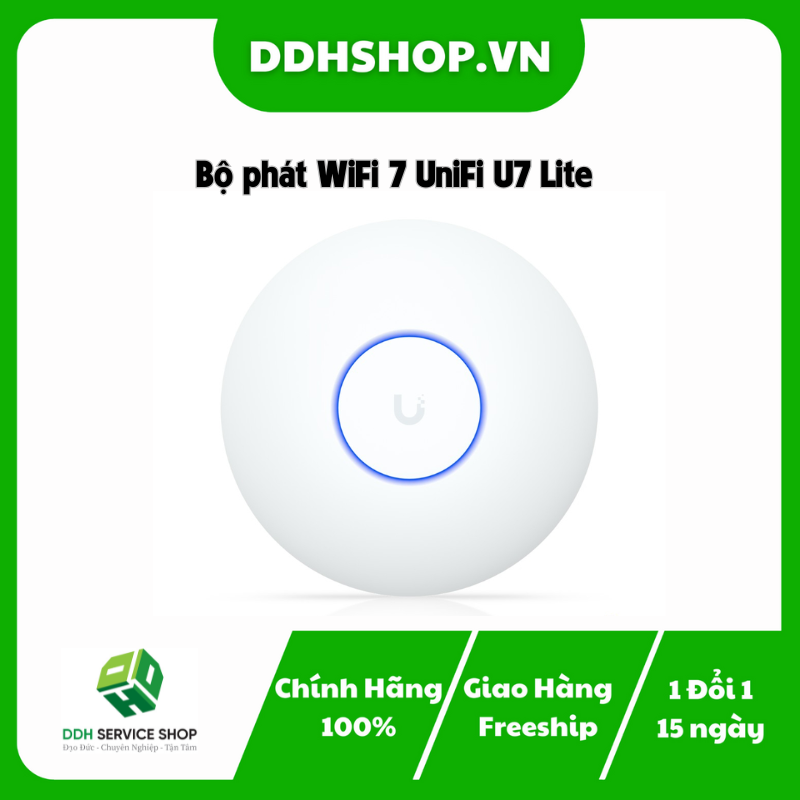

Bộ phát WiFi 7 UniFi U7 Lite ( chưa bao gồm nguồn PoE)

Bảo hành 12 tháng

WiFi 7 BE5000: 5GHz tốc độ 4.3Gbps – 2.4GHz tốc độ 688Mbps
(1) cổng Uplink 2.5Gb
Antenna MIMO: 5GHz 2×2 5dBi, 2.4GHz 2×2 4dBi
Chịu tải 200+ thiết bị
Phạm vi phủ sóng 115m2
Cấp nguồn bằng PoE

Gọi 0979 115 655 để được tư vấn nhiệt tình.

Danh mục: AccesPoint - Thiết bị phát sóng, Thiết bị mạng, Unifi Từ khóa: acces point, Unifi

Mô tả

Xem thêm

Dimensions	Ø171.5 x 33 mm (Ø6.8 x 1.3″)
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	200+
Uplink	2.5 GbE
Mounting	Ceiling, Wall (Lite Mount Included)
Power Method	PoE

Performace
MIMO (5 GHz)	2 x 2 (DL/UL MU-MIMO)
MIMO (2.4 GHz)	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate (5 GHz)	4.3 Gbps (BW240)
Max. Data Rate (2.4 GHz)	688 Mbps (BW40)
Antenna Gain (5 GHz)	5 dBi
Antenna Gain (2.4 GHz)	4 dBi
Max. TX Power (5 GHz)	24 dBm
Max. TX Power (2.4 GHz)	23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates (WiFi 7)	7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
Supported Data Rates (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
Supported Data Rates (WiFi 5)	6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
Supported Data Rates (802.11n)	6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Captive Hotspot Portal	Custom Branding Landing Page
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Hardware
Max. Power Consumption	13W
Supported Voltage Range	42.5—57V DC
Networking Interface	(1) 2.5 GbE RJ45 port
Weight	313 g (11 oz)
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate
Mount Material	UV-stabilized polycarbonate, galvanized steel (SGCC)
LEDs System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Software
Application Requirements	UniFi Network (Version 9.0.114 and later)
UniFi OS	iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
